Pipeline Gauge Plates
Manufactured at our headquarters in Tulsa, OK
Gauge plates help confirm pipeline bore before running high-value tools.
At Enduro Pipeline Services, we design and manufacture gauge plates used to identify restrictions, verify passage, and reduce risk before cleaning and inline inspection (ILI) runs.
Why Pipeline Gauging Matters
Gauge plates are one of the simplest tools you can run—and one of the most important.
Before sending an inspection tool down the line, you need to know:
Will it pass?
A gauge plate run answers that question early, before you commit time, cost, and equipment.
How Does a Pipeline Gauge Plate Work?

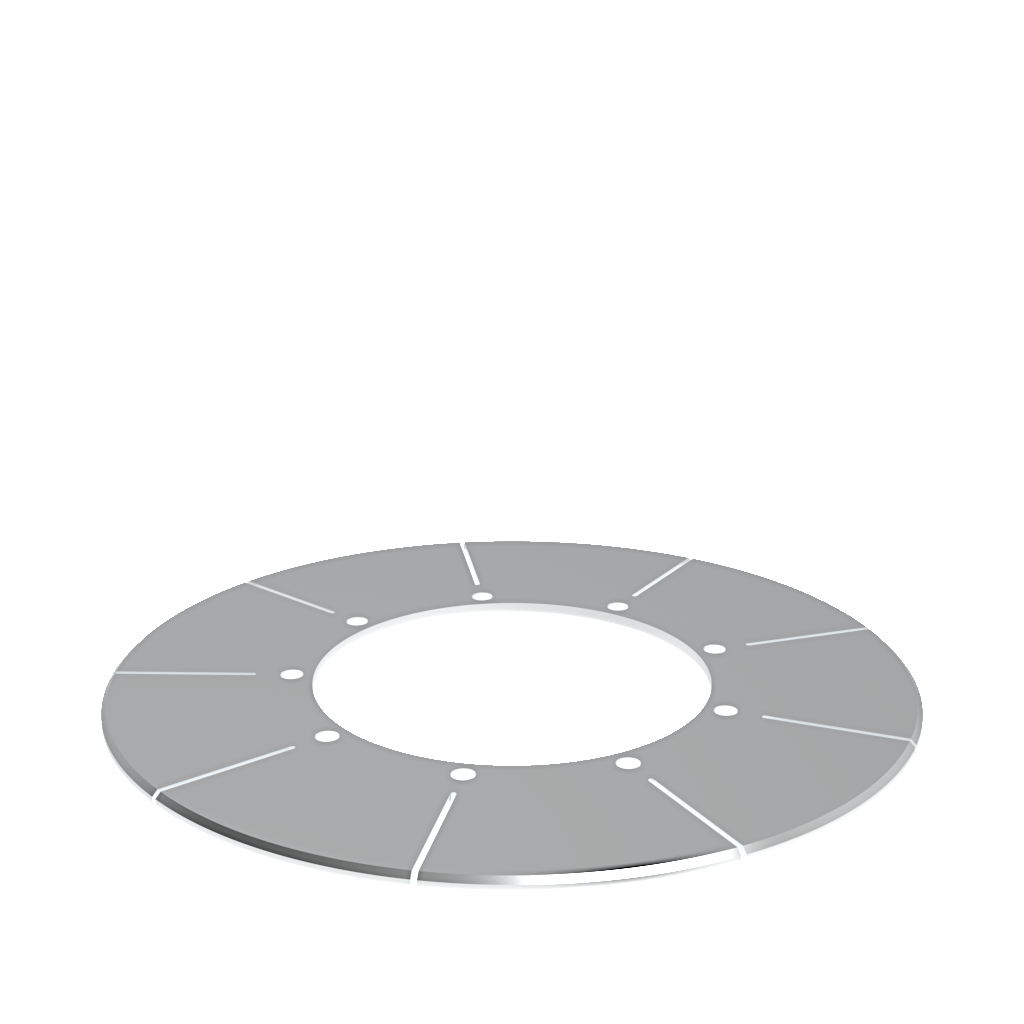

A pipeline gauge plate is installed on a gauging pig and sized to verify the pipeline's available internal bore. As the pig travels through the line, the plate can contact restrictions that reduce the available bore.
After the run, inspectors check the gauge plate for bending, deformation, or other signs of contact. A damaged or deformed plate can indicate a restriction and may require further evaluation before running a more sensitive or higher-value pipeline tool.
Gauge plates can help identify potential bore restrictions, but they do not determine the exact cause or location of every restriction. Evaluate results alongside pipeline geometry, operating conditions, and the requirements of the planned cleaning or inline inspection tool.
Avoid Problems Before They Happen
Pipelines don’t always match what’s on paper.
Restrictions can come from:
- Dents or ovality
- Debris or buildup
- Internal damage
- Changes in internal diameter
A gauge plate gives you a real-world check before running more sensitive tools.
Protect Your Inspection Investment
ILI and caliper tools are built for accuracy—not for forcing through restrictions.
Skipping a gauge run can lead to:
- Stuck tools
- Damaged equipment
- Lost time and rescheduling
- Additional recovery costs
A simple gauge plate run helps reduce that risk.
Confidence Before the Next Step
Gauge plates don’t replace cleaning or inspection—but they support both.
They help confirm:
- The available bore is suitable for the planned tool
- The selected tool size is appropriate
- There are no unexpected restrictions
It’s a small step that can prevent bigger problems.
Bore verification is only one part of inspection readiness. Learn more about preparing a pipeline for inline inspection, including cleaning, contaminant removal, gauging, geometry verification, and inspection planning.
Built for Your Pipeline — Not Guesswork
Gauge plates must be sized and configured correctly.
We help match your setup based on:
- Pipeline diameter
- Planned tool size
- Known or suspected restrictions
- Overall pigging program
You’re not guessing—we’ll help you get it right.
Manufactured in Tulsa. Ready When You Need It.
We manufacture all gauge plates at our headquarters in Tulsa, Oklahoma.
That means:
- Fast turnaround and shipping
- Consistent quality
- No reliance on third-party suppliers
- Direct support from our team
When schedules are tight, that matters.
If There’s Any Doubt, Gauge It
If you're unsure about available bore, a gauge plate is one of the easiest ways to remove uncertainty before your next run.
We’ll help you size it, configure it, and get it to your job fast.
Frequently Asked Questions
What is a pipeline gauge plate?
A pipeline gauge plate is a plate installed on a gauging pig to help verify the available pipeline bore and identify potential restrictions. After the run, inspectors check the plate for deformation or damage that may indicate contact with a restriction inside the pipeline.
When should a gauge plate be used?
Gauge plates are typically used before ILI, caliper, or other inspection runs where confirming passage is critical.
Can Enduro help size the right gauge plate?
Yes. We help determine the correct sizing and configuration based on your pipeline and planned run.
Why use a gauge plate before ILI?
A gauge plate run helps identify restrictions early and reduces the risk of tool damage or failed runs.
Get the Right Gauge Plate for Your Run
📞
800-752-1628
🌐
https://www.enduropls.com/quick-quotepage
Talk to our team about sizing, configuration, and bore verification before your next run.
