Pipeline Cleaning & Batching Pigs
Built for product separation, aggressive cleaning, sealing performance, and reliable pipeline operations.
Enduro cleaning and batching pigs are designed to help operators maintain product integrity, reduce contamination, improve cleaning efficiency, and support reliable pipeline performance across a wide range of applications.
What Is a Pipeline Batching Pig?
Batching pigs are used to separate products inside a pipeline while maintaining a seal between batches.
They are commonly used to:
- separate refined products
- reduce contamination
- improve product recovery
- support cleaning operations
- assist with displacement and dewatering
Cleaning and batching pigs can also help remove liquids, debris, paraffin, and buildup during routine maintenance operations.
Common Cleaning & Batching Pig Applications
- Product separation
- Pipeline cleaning
- Dewatering
- Displacement operations
- Maintenance pigging
- Paraffin removal
- Liquid removal
- Commissioning support
Why Sealing Performance Matters
Poor sealing performance can lead to:
- product contamination
- inefficient cleaning
- reduced batching efficiency
- increased waste
- operational downtime
- That’s why pig design, urethane quality, and configuration matter in real-world pipeline conditions.
Key Features
- Steel-Bodied Construction: Built for tough cleaning environments and long service life.

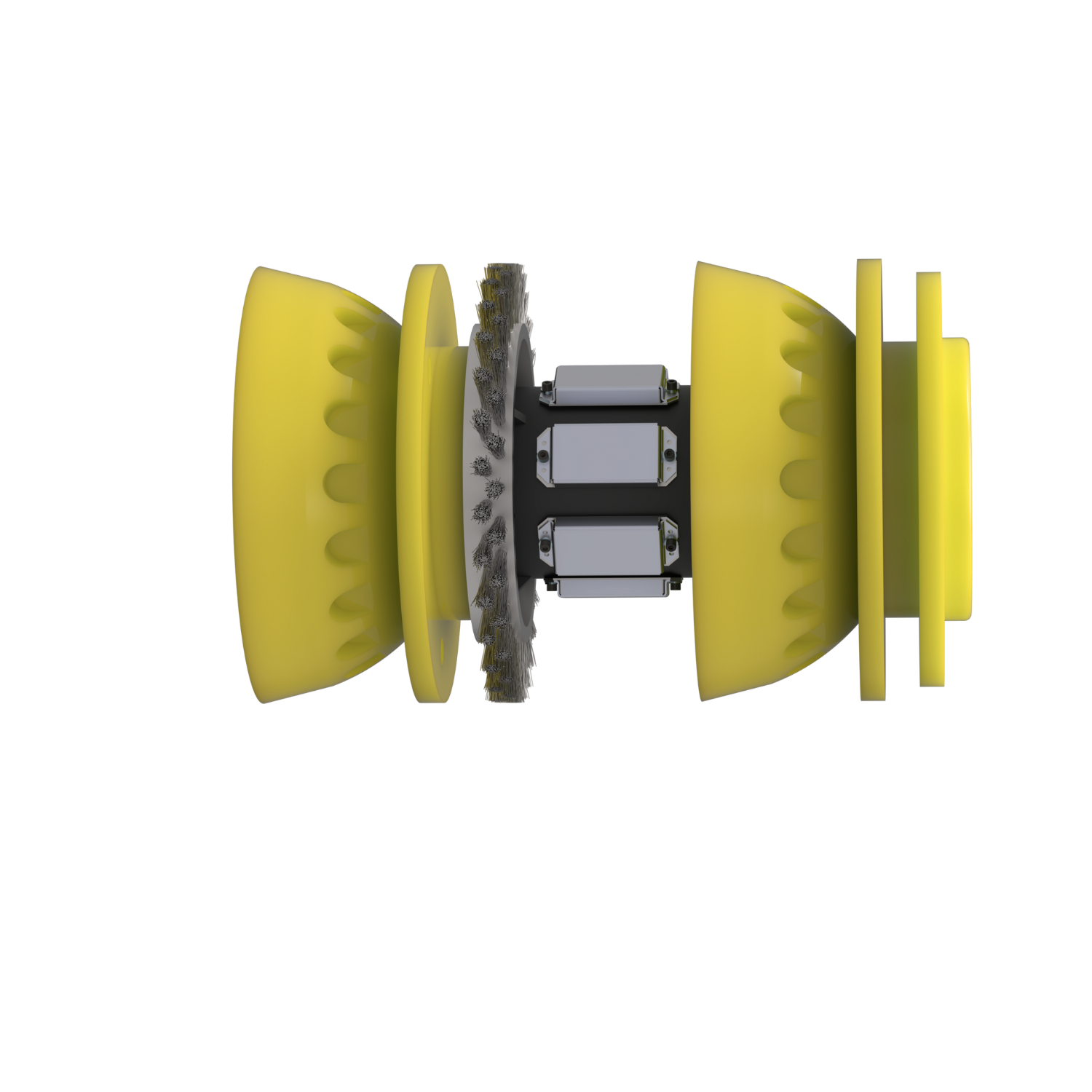

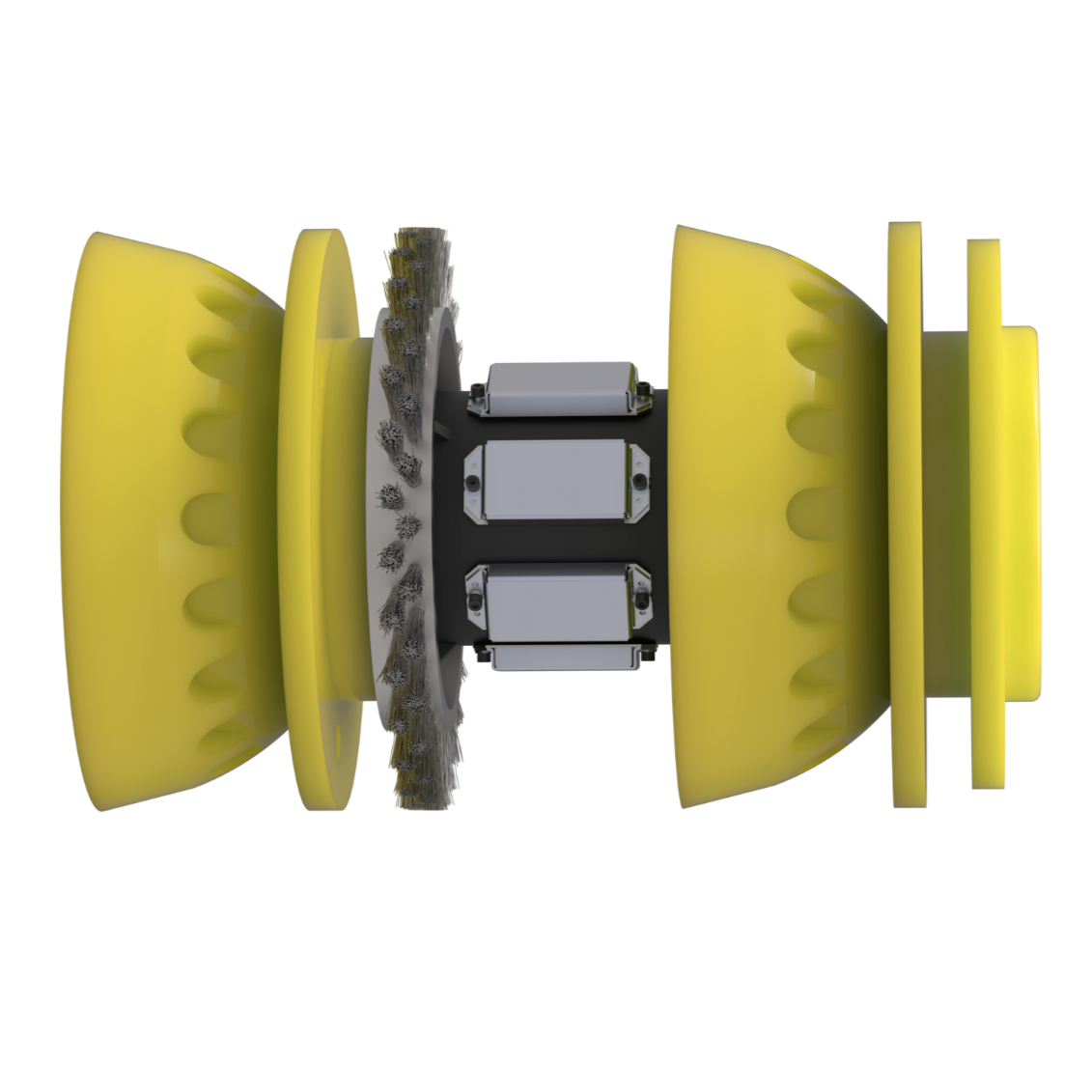

- Multiple Configurations: Advantage Cup Pigs (ADV-2CC, ADV-3CC, ADV-4CC) Combination Cup & Disc Pigs (ADV-3D-2CC, ADV-5D-2CC)
- Effective for Batching & Cleaning: Ideal for condensation removal, paraffin control, and general cleaning.
- Highly Configurable: Add brushes, magnets, and blades to increase cleaning performance.
- Handles Pipe Reductions: Engineered to navigate up to 25% reduction safely.
- Tracking Ready: Transmitter installation available when pig tracking is required.
Size Range : 4” to 60”
(Custom options available for unique applications.)
Common Pipeline Cleaning & Batching Applications:
- Pipeline batching
- Paraffin removal
- Condensation and water removal
- Light to moderate debris cleaning
- Run preparation before ILI
- General maintenance pigging
Optional Enhancements
- Wrap-around brushes
- Spring-loaded brushes
- Blades
- Magnets
- Transmitter housings
Why Operators Choose Enduro Advantage Pigs
- Reliable performance in diverse operating conditions
- Long wear life due to robust steel construction
- Flexible configurations tailored to specific cleaning challenges
- Backed by decades of pig manufacturing experience
- Supported by Enduro’s before, during, and after the run customer service model
Not Sure Which Cleaning or Batching Pig Is Right for Your Line?
Pig selection depends on:
- product type
- flow conditions
- debris levels
- sealing requirements
- pipeline configuration
Our team helps operators choose the right pig configuration for the application — without overcomplicating the process.
STS Cleaning Pig Specifications
Advantage Cleaning Pig Specifications
Body Construction
Cleaning Elements
Optional Components
Pipeline Diameter
Primary Applications
Pipeline Types
Tracking Compatibility
Manufacturing

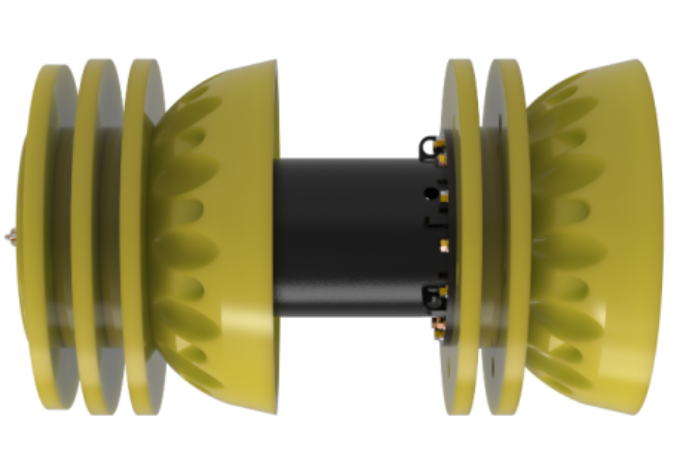

Steel-bodied pig designed for aggressive pipeline cleaning and batching applications.
Multiple cup and disc configurations designed to provide strong sealing and effective debris removal.
Brushes, magnets, blades, and gauging plates can be added depending on pipeline conditions and cleaning requirements.
Custom-built to match pipeline diameters and specifications.
Pipeline cleaning, batching operations, debris removal, and maintenance pigging programs.
Natural gas, crude oil, and refined product pipelines.
Transmitters can be installed to allow pig tracking with geophones, receivers, or NIPS units.
Designed and built in Tulsa, Oklahoma by Enduro Pipeline Services.
Not sure which pig design is right for your pipeline? See our Pipeline Cleaning Pig Comparison Guide.
FAQs
What makes Advantage pigs different from foam or urethane pigs?
Advantage pigs are steel-bodied, offering durability and high scraping force for applications requiring more aggressive cleaning.
Can I add brushes or magnets?
Yes — Advantage pigs are designed to accept modular cleaning elements for enhanced debris removal.
Are these pigs transmitter-compatible?
Yes. Transmitters can be installed in most sizes to support pig tracking.
