What Does an MFL Inspection Detect?

Magnetic Flux Leakage (MFL) inspection is one of the most widely used inline inspection (ILI) technologies for evaluating the condition of steel pipelines. By magnetizing the pipe wall and measuring changes in the magnetic field, MFL tools help pipeline operators locate corrosion, metal loss, pitting, gouges, and other anomalies that may affect pipeline integrity.

MFL inspections play an important role in integrity management programs because they allow operators to assess hundreds of miles of pipeline without excavation or taking the pipeline out of service. The inspection data helps prioritize repairs, evaluate corrosion growth, support regulatory compliance, and improve long-term maintenance planning.

This guide explains how MFL inspections work, what they detect, their limitations, and why proper pipeline cleaning is essential for obtaining reliable inspection data.

What Is an MFL Inspection?

A Magnetic Flux Leakage (MFL) inspection is a non-destructive inline inspection method used to identify areas of metal loss within steel pipelines. An MFL inspection tool, often called an intelligent pig or smart pig, travels through the pipeline while powerful magnets temporarily saturate the steel pipe wall with a magnetic field.

When the pipe wall is free of defects, the magnetic field remains largely contained within the steel. However, when corrosion, pitting, erosion, or other forms of metal loss reduce the wall thickness, some of the magnetic field escapes—or "leaks"—from the steel. Highly sensitive sensors positioned near the pipe wall measure these magnetic flux leakage signals as the tool travels through the pipeline.

Engineers analyze the recorded data to estimate the location, size, and characteristics of metal loss anomalies. This information helps operators determine the condition of the pipeline and identify areas that may require additional evaluation or repair.

Because MFL inspections can examine long sections of pipeline during normal operations, they have become one of the most common technologies used for integrity management of crude oil, refined products, natural gas, NGL, and many other steel pipeline systems.

How Does an MFL Inspection Work?

Although the technology behind Magnetic Flux Leakage is highly sophisticated, the inspection process follows a straightforward sequence.



Step 1: The Pipeline Is Prepared

Before any inline inspection is performed, the pipeline should be thoroughly cleaned to remove debris that could interfere with the inspection tool or the collected data. Common contaminants include:

  • Black powder
  • Mill scale
  • Paraffin and wax
  • Rust flakes
  • Welding debris
  • Sand
  • Construction debris

Operators often perform multiple cleaning runs using progressively more aggressive cleaning pigs before launching the inspection tool.

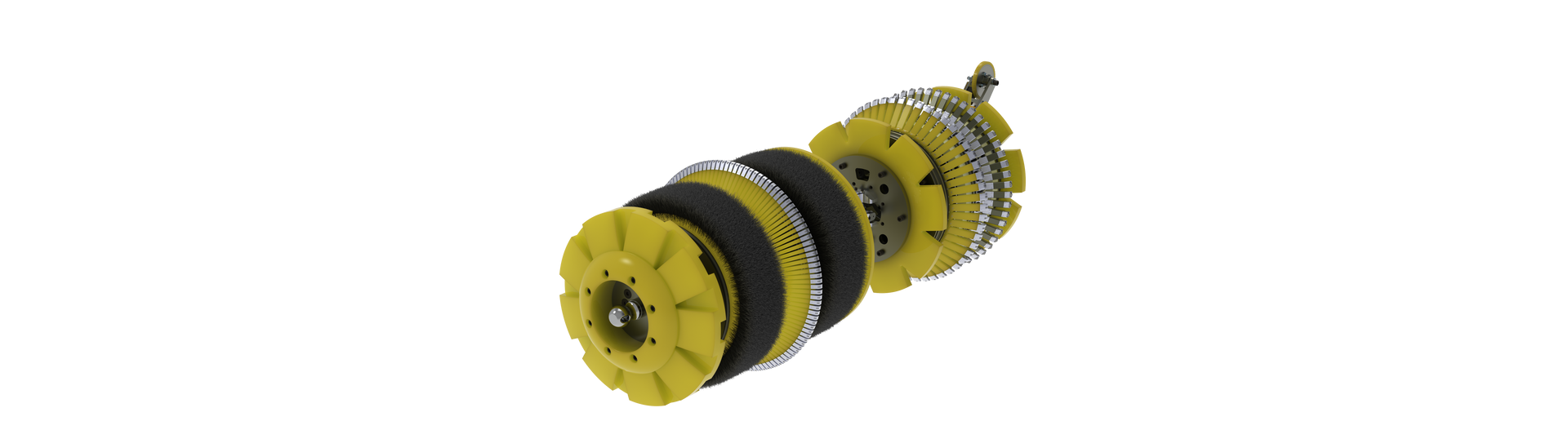

Step 2: The MFL Tool Magnetizes the Pipe Wall

As the inspection tool travels through the pipeline, powerful permanent magnets create a magnetic field that saturates the steel pipe wall.

Under normal conditions, the magnetic field remains within the pipe wall because steel provides an efficient path for magnetic flux.

Step 3: Metal Loss Causes Magnetic Flux Leakage

When corrosion or another defect removes steel from the pipe wall, the magnetic field can no longer remain completely contained.

Instead, a portion of the magnetic field escapes around the defect, creating what engineers refer to as magnetic flux leakage.

The amount and pattern of this leakage changes depending on the size, depth, and shape of the anomaly.

Step 4: Sensors Record the Leakage Signals

Arrays of precision sensors continuously measure the leakage field as the inspection tool moves through the pipeline.

The collected measurements are recorded throughout the inspection run and later analyzed using specialized software to estimate:

  • Location of the anomaly
  • Depth of metal loss
  • Length of the defect
  • Width of the defect
  • Orientation within the pipeline

The final inspection report provides pipeline operators with detailed information that supports integrity assessments, maintenance planning, and repair decisions.

What Does an MFL Inspection Detect?

An MFL inspection is designed primarily to detect metal loss in steel pipelines. Because corrosion removes steel from the pipe wall, MFL technology has become one of the industry's preferred methods for evaluating corrosion-related threats.

Modern MFL inspection tools can identify a wide variety of anomalies associated with metal loss, helping operators understand both the extent and severity of deterioration throughout the pipeline.

The following sections explain the most common conditions detected by MFL inspections.

Internal Corrosion

Internal corrosion develops on the inside surface of a pipeline and is often associated with water, carbon dioxide (CO₂), hydrogen sulfide (H₂S), bacteria, production fluids, or other corrosive products transported through the line.

As corrosion removes steel from the pipe wall, the resulting metal loss creates magnetic flux leakage that can be measured by the inspection tool.

Internal corrosion may appear as:

  • General corrosion
  • Localized corrosion
  • Pitting
  • Channeling
  • Erosion-corrosion

Detecting internal corrosion early allows operators to evaluate remaining wall thickness, investigate the cause of corrosion, and schedule repairs before the condition worsens.

External Corrosion

External corrosion occurs on the outside surface of the pipeline and is commonly associated with coating damage, inadequate cathodic protection, soil conditions, moisture intrusion, or mechanical damage to the pipe coating.

Although the corrosion is located on the exterior of the pipe, it still removes steel from the pipe wall. Because MFL technology measures changes in the magnetic field caused by metal loss, external corrosion can also be detected during an inspection.

External corrosion is one of the primary threats evaluated during many integrity management programs because it can progress unnoticed for years before becoming visible above ground.

General Metal Loss

Not all corrosion occurs as isolated pits.

Some pipelines experience gradual wall thinning across larger sections of pipe due to long-term corrosion or erosion.

This type of deterioration is referred to as general metal loss.

Rather than identifying a single isolated defect, MFL inspections help operators locate areas where overall wall thickness has been reduced over time. Understanding these larger corrosion patterns is important when evaluating the remaining strength of a pipeline and planning future maintenance activities.

Localized Pitting Corrosion

Pitting corrosion is one of the most serious forms of corrosion because relatively small pits can penetrate deeply into the pipe wall while leaving much of the surrounding steel unaffected.

Deep pits create concentrated areas of stress and may significantly reduce the remaining wall thickness.

Because pitting produces distinct magnetic flux leakage signatures, MFL inspections are commonly used to identify and evaluate pitting corrosion throughout a pipeline system.

Inspection analysts review the size, depth, spacing, and distribution of pits to help determine whether additional investigation or repairs are required.

Erosion

Erosion differs from corrosion because metal is removed primarily through mechanical wear rather than chemical reactions.

High flow velocities, entrained solids, sand, or abrasive materials can gradually wear away sections of the pipe wall, particularly near fittings, elbows, restrictions, or changes in flow direction.

Since erosion also removes steel from the pipeline, MFL technology can detect these areas of metal loss and help operators evaluate their severity.

MFL Resource Center

  • What Doesn't an MFL Inspection Detect Well?

    Although Magnetic Flux Leakage (MFL) inspection is one of the industry's most effective technologies for identifying metal loss, no single inline inspection technology can detect every type of pipeline anomaly.


    MFL is specifically designed to evaluate changes in the steel caused by metal loss. Defects that do not significantly remove steel, or that primarily affect the geometry of the pipe, often require different inspection technologies.


    Understanding these limitations helps pipeline operators select the appropriate inspection tool and interpret inspection results more effectively.

  • Can MFL Detect Cracks?

    Not reliably.


    Conventional MFL inspection tools are designed to identify areas where steel has been removed from the pipe wall. Cracks, however, often begin as extremely narrow defects that produce little or no measurable metal loss during their early stages.


    Because of this, cracks may not generate sufficient magnetic flux leakage to be accurately detected or characterized by a standard MFL inspection.


    For pipelines where cracking is the primary integrity concern—such as stress corrosion cracking (SCC), fatigue cracking, or seam weld cracking—operators typically use specialized crack detection technologies rather than conventional MFL tools.


    If corrosion has progressed to the point where it has removed measurable amounts of steel, MFL technology can detect the resulting metal loss. However, crack detection itself generally requires other inspection methods.

  • Can MFL Detect Dents?

    Not by itself.


    A dent changes the shape of the pipe but does not necessarily remove steel from the pipe wall.


    Since MFL measures magnetic flux leakage caused by metal loss, a simple dent may produce little or no measurable MFL response.


    Pipeline geometry (caliper) tools are specifically designed to identify:


    Dents

    Ovality

    Wrinkles

    Buckles

    Bore restrictions

    Mechanical deformation


    Many operators perform both geometry and MFL inspections to obtain a more complete understanding of pipeline condition.

  • Can MFL Distinguish Between Internal and External Corrosion?

    Modern MFL technologies can often help analysts determine whether metal loss originated on the inside or outside surface of the pipeline, depending on the inspection tool design and sensor configuration.


    Identifying the location of corrosion is valuable because it helps integrity engineers investigate the underlying cause.


    For example:


    Internal corrosion may indicate:


    Water accumulation

    Carbon dioxide (CO₂)

    Hydrogen sulfide (H₂S)

    Microbiologically influenced corrosion (MIC)

    Production-related contaminants


    External corrosion may indicate:


    Coating damage

    Cathodic protection deficiencies

    Soil conditions

    Mechanical damage to the coating

    Moisture intrusion


    Determining whether corrosion originated internally or externally allows operators to develop more effective repair and mitigation strategies.

  • Why Pipeline Cleaning Is Critical Before an MFL Inspection

    One of the most important factors affecting inspection quality is pipeline cleanliness.


    An MFL inspection tool relies on close proximity between its sensors and the pipe wall. Heavy debris inside the pipeline can interfere with tool performance, increase sensor lift-off, and reduce the quality of the inspection data.


    Common contaminants include:


    Black powder

    Mill scale

    Rust flakes

    Welding debris

    Paraffin and wax

    Sand

    Construction debris

    Liquids and sludge


    For this reason, pipeline operators typically perform a progressive cleaning program before launching an inline inspection tool.

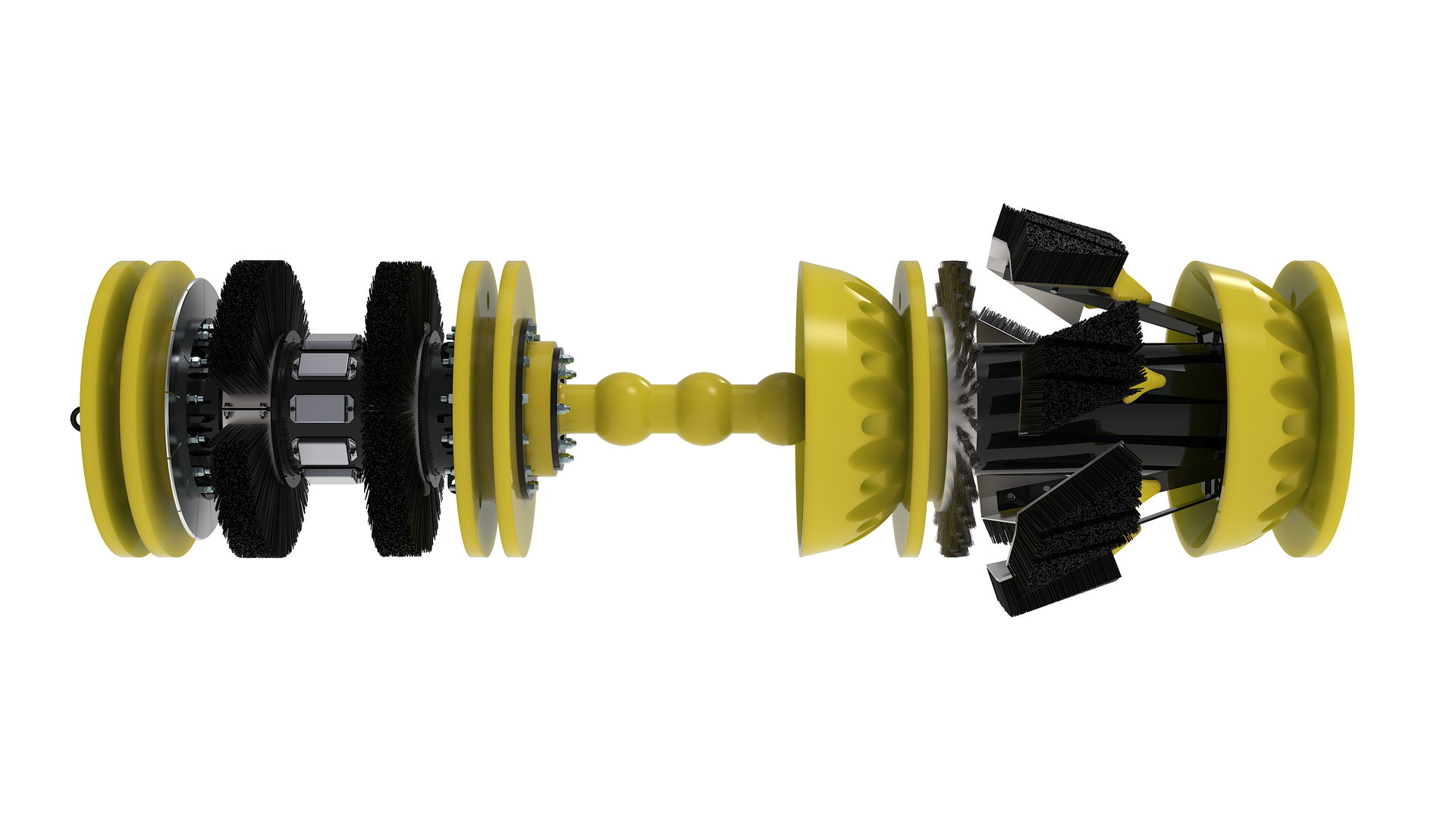

    Cleaning often begins with lighter cleaning pigs before progressing to more aggressive configurations using:


    Brushes

    Magnets

    Scraper components

    Studded cups

    Custom cleaning pigs


    The objective is to remove as much debris as practical while confirming the pipeline is suitable for inspection.


    Proper cleaning not only improves inspection data quality but can also reduce the risk of tool damage, excessive drag, or inspection delays.

  • How Accurate Are MFL Inspections?

    Modern MFL technology provides highly reliable information about metal loss when the inspection is properly planned and executed.


    However, no inline inspection technology provides perfect measurements. The accuracy of any inspection depends on several operational factors, including:


    Pipeline cleanliness

    Tool speed

    Sensor performance

    Pipe wall condition

    Feature geometry

    Data analysis methods

    Inspection planning


    Inspection vendors typically report sizing accuracy and probability of detection (POD) based on extensive validation testing. These performance specifications help operators understand the confidence associated with reported anomaly dimensions and support sound integrity management decisions. Enduro's technical documentation includes published POD and sizing specifications for its DfL-UHR tools.

  • When Should an MFL Inspection Be Used?

    MFL inspection is commonly selected when pipeline operators need to evaluate the overall condition of a steel pipeline for corrosion-related threats.


    Typical applications include:


    Integrity management programs

    Baseline inline inspections

    Corrosion assessment

    Reassessment intervals

    Pipeline life extension studies

    Regulatory compliance programs

    Asset management planning

    Post-cleaning verification before maintenance decisions


    Because corrosion remains one of the leading threats to pipeline integrity, MFL inspections continue to play a critical role in helping operators prioritize repairs, reduce risk, and make informed maintenance decisions.

MFL vs. Caliper Inspection

Although MFL and caliper inspections are often performed together, they answer different questions about pipeline condition.

MFL Inspection

Detects metal loss

Finds corrosion

Detects pitting

Identifies erosion

Evaluates wall loss

Assesses corrosion severity

Caliper Inspection

Measures pipeline geometry

Finds dents

Detects ovality

Detects wrinkles

Measures bore restrictions

Assesses mechanical deformation

Think of it this way:

An MFL inspection tells you how much steel has been lost.

A caliper inspection tells you whether the shape of the pipeline has changed.

Together, these technologies provide a more complete assessment of pipeline integrity.

MFL vs. Ultrasonic (UT) Inspection

Both Magnetic Flux Leakage (MFL) and Ultrasonic Testing (UT) are widely used inline inspection technologies, but they operate using very different principles.

MFL Inspection

Uses magnetic fields

Measures metal loss

Effective in gas and liquid pipelines

Excellent for corrosion surveys

Performs well over long distances

Ultrasonic Inspection (UT)

Uses ultrasonic sound waves

Measures wall thickness directly

Typically requires a liquid couplant

Excellent for detailed wall thickness measurements

Often selected for specific applications requiring high-resolution thickness data

The choice between MFL and UT depends on several factors, including the pipeline product, inspection objectives, operating conditions, and the types of threats being evaluated.

Why Choose Enduro for MFL Inspection Services?

An MFL inspection is only as valuable as the planning, execution, and interpretation behind it. Successful inline inspections require more than advanced technology—they require experienced personnel who understand pipeline operations, inspection planning, data analysis, and the factors that influence inspection quality.

For more than three decades, Enduro Pipeline Services has helped operators evaluate pipeline integrity through inline inspection, pipeline cleaning, and integrity management solutions. From pre-inspection cleaning to final reporting, our team works with customers to help ensure inspection tools collect the highest quality data possible.

Enduro offers a complete range of integrity services, including:

  • High-resolution MFL inspection
  • Ultra High Resolution (UHR) MFL combination technology
  • Digital geometry (caliper) inspections
  • Pipeline cleaning and pre-ILI cleaning programs
  • Dynamic Speed Control (DSC) solutions
  • GIS and XYZ mapping services
  • Inspection planning and project support

Rather than simply performing an inspection, our goal is to help customers obtain reliable information that supports informed integrity management decisions.

Enduro's Integrated Inspection Approach

Many inline inspection projects involve more than a single inspection run.

Enduro provides integrated inspection solutions that can include:

  • Pipeline Cleaning: Cleaning programs remove contaminants that may interfere with inspection quality, including black powder, mill scale, paraffin, rust flakes, welding debris, and construction debris.
  • Geometry Inspection:  Digital caliper inspections evaluate pipeline geometry before or during integrity assessments by identifying dents, wrinkles, buckles, ovality, bore restrictions, and other mechanical deformation.
  • Magnetic Flux Leakage Inspection:  High-resolution MFL technology evaluates the condition of the pipe wall by identifying corrosion, metal loss, pitting, erosion, and other wall-loss anomalies.
  • Speed Control:   Maintaining consistent inspection speed can improve data quality, particularly on natural gas pipelines where flow conditions may vary. Enduro's Dynamic Speed Control (DSC) technology is designed to help regulate tool velocity throughout the inspection. The company presentation highlights its application with cleaning pigs, caliper tools, and MFL tools during challenging inspection projects.
  • Data Analysis & Reporting:  Inspection results are reviewed by experienced analysts to produce reports that help operators prioritize repairs, evaluate pipeline condition, and support integrity management programs.

Frequently Asked Questions

  • What does an MFL inspection detect?

    An MFL inspection detects metal loss caused by internal corrosion, external corrosion, pitting, erosion, gouges, and other defects that remove steel from the pipeline wall.

  • How does an MFL inspection work?

    An MFL tool magnetizes the steel pipe wall as it travels through the pipeline. Areas where metal has been lost create magnetic flux leakage, which is measured by sensors and analyzed to identify the location and severity of defects.

  • Can an MFL inspection detect cracks?

    Not reliably. Conventional MFL technology is designed to detect metal loss rather than narrow crack-like defects. Specialized crack detection technologies are typically used when cracking is the primary concern.

  • Can MFL distinguish between internal and external corrosion?

    Many modern MFL technologies can help determine whether corrosion originated on the inside or outside surface of the pipeline, providing valuable information for integrity assessments and repair planning.

  • Why is pipeline cleaning important before an MFL inspection?

    Cleaning removes contaminants such as black powder, mill scale, paraffin, rust, and construction debris that can interfere with inspection tools and reduce data quality. A properly cleaned pipeline helps improve inspection reliability.

  • What is the difference between an MFL inspection and a caliper inspection?

    An MFL inspection evaluates metal loss caused by corrosion and erosion, while a caliper inspection measures the internal geometry of the pipeline to identify dents, wrinkles, ovality, and other deformation.
